Verbouwing · bijgebouw

Bakoven

The old bread-oven outbuilding (bakoven) next to the garage, as it will be rebuilt. Every number on this page comes from the architect’s 1:50 plans (De Bouwerij, 22‑06‑2023), measured from the vector PDF to about ±1 cm. Values estimated from photos or assumed are shown in grey italic with a ~.

Footprint
610–627 × 455–465cm
outer, 28,42 m² · skewed, not a rectangle
Interior
24,36m²
577–592 × 412–422 cm
Walls
19 · 24 · 34 · 14cm
rear block · front brick · street brick · shared
Gutter / ridge
2,47 / 4,13m
above the floor · peil 2.94 / 4.60
Flue top
5,25m
peil 5.72 · above the garage ridge 5.42
Roof pitch
34,0° / 35,1°
rear / front · clay pantiles

013D model

Open fullscreen ↗

Built separately from the same dimensions.json, with the same axes: x along the rear wall towards the street, y towards the koer, z up from the oven floor.

02Fasen / Phases

Ten cumulative states, from today to the finished room. The floor is dug out 43 cm and gets 39 cm of layers, so it ends 4 cm lower than now (−4 · peil 0.43). The walls get an 11,25 cm lining. Use ◀ ▶, the slider, the chips or the arrow keys.

0 HuidigCurrent state
SVG

Fase 0 van 9

Huidig

Nieuw in deze fase

    #FaseMateriaalDiktez bodem … topPeil top
    0HuidigCurrent stateaarden vloer, bakoven + rookkanaal, bestaande balken—00.47
    1Bakoven wegBread oven removedverwijderd: bakoven, rookkanaal Ø20, loodslabbe———
    2Uitgraven −43 cmExcavate 43 cmgrond uitgegraven43−43 … 0bodem 0.04
    3Beton 15 cmConcrete slabbeton15−43 … −280.19
    4PUR-isolatie 14 cmPUR insulationPUR (gespoten)14−28 … −140.33
    5Chape 8 cmScreedchape8−14 … −60.41
    6Parket 2 cmHardwood floormassief hout (eik)2−6 … −40.43
    7Muurisolatie rotswol 10 cmWall insulationrotswol tussen houten stijlen · stijlen ~4,5 × 10 h.o.h. 6010~−6 … ~+238~2.85
    8Dakisolatie tussen kepersRoof insulationrotswol tussen kepers (assumed) + dampscherm~19——
    9Gyproc wandenPlasterboard wallsgyproc~1,25−4 … +2382.85
    =Vloerpakketfloor package15 + 14 + 8 + 2 in een uitgraving van 43 → vloer 4 cm lager dan nu39−43 … −40.43
    =Wandpakketwall packagerotswol 10 + gyproc ~1,25, per wand~11,25——
    Aandachtspunten in phases.json (8)
    1. Parket (fase 6, z −6 … −4) is laid before the studs (fase 7), but the studs stand on the chape at z −6. So the parquet has to stop 10 cm short of every wall, and the gyproc (z −4) then stands on the parquet edge. It is drawn that way.
    2. Wall insulation and gyproc stop at z 238 (wall plate) on all four walls, yet the street gable and the shared garage wall continue up to the roof. The gable triangles above +238 stay uninsulated, while the roof is insulated in fase 8.
    3. Fase 0 lists the existing ceiling joists, and no phase removes them; dimensions.json says the new state has an open roof without that flat ceiling. They are drawn as BESTAAND in every phase.
    4. Fase 0 has the bread oven, the flue and an earth floor at z 0. dimensions.json (from the photos) says the old oven is already gone and the soil already dug out roughly 30–50 cm. The drawings follow phases.json.
    5. Roof: 19 cm of insulation fills the whole rafter depth (rafters ~19, dimensions.json), with no ventilation gap or underlay listed under the tiles, and no interior roof finish.
    6. Door D1 keeps its threshold at z 0 (peil 0.47): with the finished floor at −4 there is a 4 cm step at the door.
    7. The excavation bottom (z −43) stays 12 cm above the footing tops (z −55, plan p.3).
    8. Net interior after the 11,25 cm lining, computed on the skewed walls: 554,5 × 389,9 cm at the rear / street end (569,1 front, 399,3 at the garage end), 22,15 m². phases.json estimates 554,5 × 389,5.

    032D plans

    Scale 1:50 on A4 landscape, dimensions in cm, levels in m. Click a drawing to zoom; scroll or pinch to zoom, drag to pan.

    Top view of both pantile slopes. The ridge runs along x at peil 4.60; the flue passes through the front slope; grey PVC gutters sit on both long sides. The roof stops against the higher garage wall, with no overhang there.

    Download SVGOpen ↗

    04Dimensions

    Generated from analyse/dimensions.json, the same data the drawings use. Hover a source tag for the exact reference.

    plan label printed on the plan measured on plan vector geometry, ±1 cm photo estimate assumed

    Openings

    OpeningWallx from OWidthSill zHead zHeightNotes
    D1doorfront201,3 – 295,6940194194single leaf 88, opens inward, hinged on the street side; 219 from the shared wall; frame on the inner side between brick pilasters
    W1windowfront413,2 – 4837095193982 casements; 118 from the door, 127 from the street corner; bluestone sill x 403–493, z 85–95
    G1glass blocksrear217 – 336119152192406 × 2 blocks ~19 × 19, 10 thick, flush with the outer face; chain 217 / 119 / 274
    FlueØ20 pipefront slopex 170,5 · y 338Ø20197525—through the front slope ~1 m in front of the ridge; flashing collar 40 wide, z 328–362

    Key dimensions

    ItemValueSourceNote
    Footprint
    Outer length, rear (from shared-wall face)610 cmplan label
    Outer length, front (from shared-wall face)627 cmplan label
    Total length incl. 14 cm shared wall (rear)624 cmmeasured on plan
    Outer depth, street end455 cmplan label
    Outer depth, garage end465 cmmeasured on plan
    Outer depth at section A460 cmmeasured on plan
    Inner width, rear / front577 / 592 cmplan labelfront measured on plan
    Inner depth, street end / garage end412 / 422 cmplan labelgarage end measured on plan
    Interior area24,36 m²plan labelcomputed 24.357 m²
    Outer footprint area28,42 m²measured on plan29,07 m² incl, shared wall
    Skew: front wall / shared wall-0,93° / -2,12°measured on planrear wall ⟂ street gable
    Walls
    Rear wall — thickness19 cmmeasured on planconcrete blocks (betonblokken
    Front (koer) wall — thickness24 cmmeasured on planold red brick (~1 brick)
    Street gable — thickness34 cmmeasured on planold red brick (1.5 brick
    Shared garage wall — thickness14 cmmeasured on planconcrete blocks (14 cm)
    Heights (z above oven floor · peil)
    Finished floor (FFL)0 cm · peil 0.47plan label
    Top of masonry, long walls238 cm · peil 2.85plan label
    Top of timber wall plate245 cm · peil 2.92measured on plan
    Gutter247 cm · peil 2.94plan label
    Tile edge at eaves251 cm · peil 2.98measured on plan
    Collar tie, underside352 cm · peil 3.99measured on plan
    Interior apex (rafter underside)384 cm · peil 4.31measured on plan
    Street gable apex under verge408 cm · peil 4.55measured on plan
    Ridge (roof surface)413 cm · peil 4.60plan label
    Ridge tile top429 cm · peil 4.76measured on plan
    Chimney / flue top525 cm · peil 5.72measured on plan
    Garage eaves (context)322 cm · peil 3.69plan label
    Garage ridge (context)495 cm · peil 5.42plan label
    Ground at street gable (rear / front)-42 / -38 cm · peil 0.05 / 0.09measured on plan
    Roof
    Pitch, rear / front34,0° / 35,1°measured on plannot labelled on the plans
    Eaves overhang (tile edge)6 cmmeasured on plan
    Verge at street gable3 cmmeasured on plan
    Build-up perpendicular to roof24 cmmeasured on planrafters ~19 cm; spacing not drawn
    Gutters (front + rear)12 × 9 cm, top z 247plan labelhalf-round grey PVC
    DownpipesØ8 cm at x 602measured on planstreet end of each gutter
    Covering~ceramic pantilesassumedtype and colour not specified
    Interior, floor, foundations
    Bread-oven block198 × 187 × 147 cmplan labelx -16…190 · y 248…432
    Oven mouth35 × 44 cmmeasured on planz 43,6–88, street-facing side
    Flue pipeØ20 cm, z 197 → 525measured on planon a 35 × 35 base, z 147–197
    Floor build-up above slab10 cmmeasured on plan
    Concrete slab15 cm (z -25 … -10)measured on plan
    Footing, rear59 × 30 cm (z -85 … -55)measured on plan
    Footing, front74 × 30 cm (z -85 … -55)measured on plan

    05Current state

    Three interior photos taken on 14-10-2026. The camera positions are approximate and only show which wall each photo is looking at.

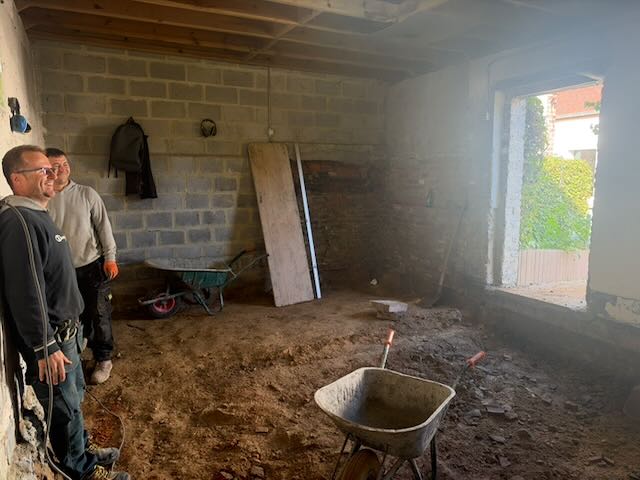

    Looking at the shared garage wall (concrete block)
    Looking at the shared garage wall (concrete block) The old red brick in its lower right corner is what is left of the former bread oven. Doorway D1 is on the right, and the existing timber ceiling joists run overhead. IMG_0159 · camera ≈ (470, 200), looking −x

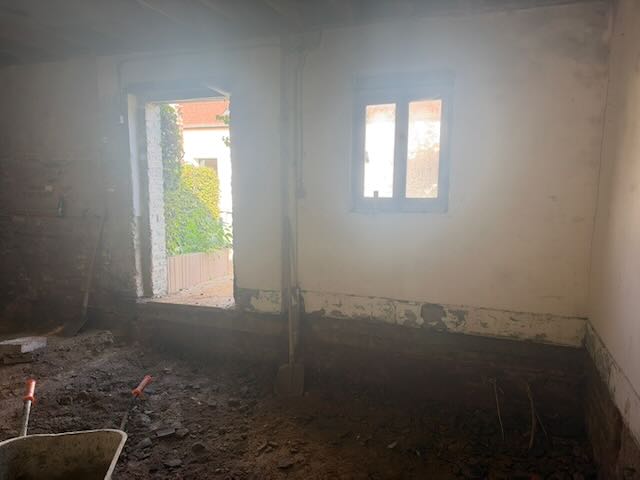

    The front (koer) wall from inside
    The front (koer) wall from inside Doorway D1 is on the left, with its exposed brick jamb, and the small two-pane window W1 is on the right. The floor has been dug out well below the threshold. IMG_0160 · camera ≈ (400, 95), looking +y

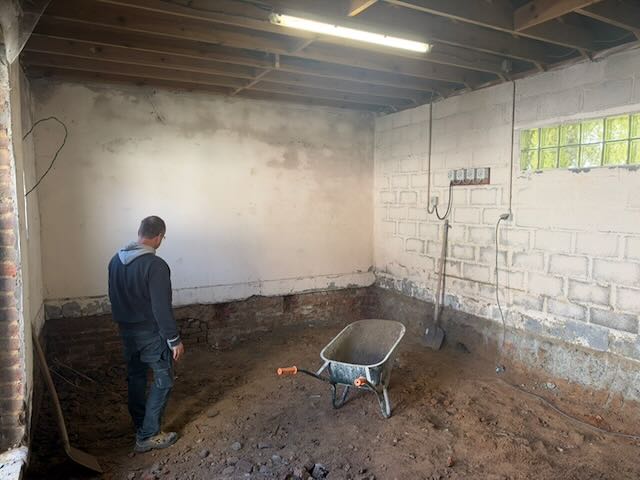

    The street gable and the rear wall
    The street gable and the rear wall The street gable is plastered white, with its brick footing exposed. On the right is the rear wall in painted block, with the two-row glass-block strip G1 high up. Boarded ceiling joists span front to rear. IMG_0161 · camera ≈ (240, 330), looking +x, turned to the rear

    06Onzekerheden · uncertainties

    What the plans do not settle, and what does not add up in the measured data.

    From the analysis

    1. No north arrow: orientation (+y ~ N, +-20 deg) is inferred from photo compass + PV placement.
    2. Roof pitch not labelled: 34.0 deg (rear) / 35.1 deg (front) measured; the slight asymmetry and the skewed front wall make the roof planes very slightly warped - fine to model as planar with the given ridge/eave lines.
    3. Glass-block heights (z 152-192) come only from Snede A geometry.
    4. Window sill height 95 and head 193 measured from p.4 elevation (not labelled).
    5. Exterior finishes/colours (render vs whitewash, tile colour, door/window colour) are not labelled for the oven.
    6. Lintel bands may be timber (brown) like the garage's labelled band - not labelled for the oven.
    7. Existing ceiling joist height ~2.1-2.35 m above new FFL (photo estimate only); whether they are removed is not stated.
    8. Rafter spacing, joinery profiles, door leaf design are schematic/assumed.
    9. Shared wall is only 14 cm (garage wall); whether a new inner leaf is built is not shown.

    Found while drawing

    1. Front dimension chain: 219 + 94 + 118 + 70 + 40 + 14 + 73 = 628, against the overall label 627. With the measured garden-wall position (x 524,3–538,3) the last segments are 41,3 / 14 / 71,3 instead of 40 / 73. Ticks sit at the measured positions; the labels are the architect's.
    2. Roof plan p.2 (638 × 464, polygon in roof.roof_plan_outline) draws the front eave parallel to the rear wall, with a 10 cm verge at the front corner. That conflicts with the skewed front wall and the measured eave lines (tile edge 6 cm outside both long walls, verge 3). The drawings use the eave and ridge lines, which give a front edge of ≈ 630 and a depth of 466,6 (street end) to 476,8 (garage end).
    3. Door D1: the JSON says the frame sits “in the outer 24 cm, ~1 cm behind the outer face”, but both p.1 and Snede A show it on the inner side, between the brick pilasters (x 190.7–305). It is drawn on the inner side.
    4. Bread-oven block: y_range ends at 432, but the 187 label is measured from the inner face of the front wall (y ≈ 437–440), and the architect draws the block against that wall. It is drawn against the wall, with the rear edge skewed from 254 to 242 as the JSON notes.
    5. Front gutter: an outer edge 28 cm beyond the wall with a 12 cm gutter would put the gutter 10 cm in front of the 6 cm tile edge. Both gutters are drawn 12 cm wide under the tile edge (5–17 cm beyond the face).
    6. Garage footprint: its east edge (-17, -45,5) → (-29, 814,8) runs at 0.79° and lies 18,8 cm off the shared-wall line at the rear end. The drawings use the shared-wall faces for the garage's east side.
    7. Street gable outline: the front verge point is at y 456.6, while the wall corner is at 454.6, and the apex is at y 233.9 against the ridge line's 232.1. These are 2 cm effects; the gable is drawn to the wall corner and the verge follows the ridge line.
